Digital Theodolite with Upward Laser Pointer
- Item No. : DT-102L
Main Features :
鈼 Accuracy 2"/5"
鈼 Reliable Performance
鈼 Laser plummet/Optical Plummet optional
鈼 With Upward laser pointer (200m) for Fast Collimating and Upward Vertical Measurement
鈼 Large LCD Screen, Dual Sides
鈼 Abundant Program Design, easy-to-operate
鈼 Easy to Calibrate

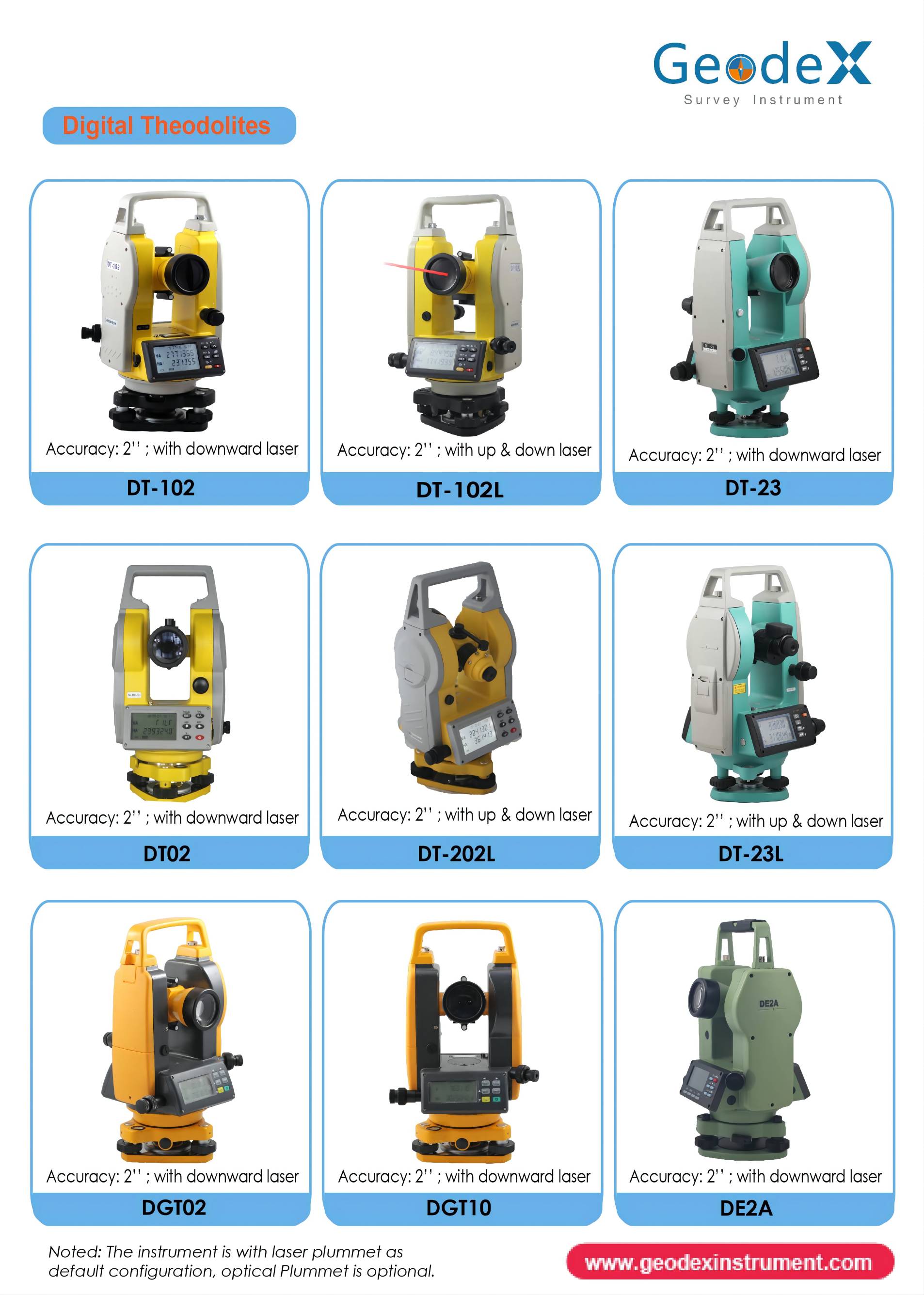

Download Brochure of Digital Theodolite DT-102/L
- Inquiry now
Technical Specifications :
|
|
Model |
DT-102 |
DT-102L |
|
ANGLE MEASUREMENT |
Accuracy |
2" |
|
|
Method |
Absolute Encoding Technology |
||
|
Horizontal angle |
Dual |
||
|
Vertical angle |
Single |
||
|
Miimum Reading |
1"/5" |
||
|
Unit |
360掳/400gon |
||
|
TELESCOPE |
Image |
Erect |
|
|
Magnification |
30x |
||
|
Length |
155mm |
||
|
Objective lens |
45mm |
||
|
Field of view |
1掳30' |
||
|
Resolving power |
3.5" |
||
|
Minimum focus |
1.3m |
||
|
Stadia ratio |
100 |
||
|
Stadia constant |
0 |
||
|
Sighting collimator |
Double |
||
|
LASER POINTER |
Wave length |
- |
690mm |
|
Deviation of laser pointer |
- |
鈮10" |
|
|
Laser range |
- |
200m |
|
|
OPTICAL PLUMMET |
Magnification |
3x |
|
|
Field of view |
3掳 |
||
|
Focusing |
0.3m to 鈭 |
||
|
DISPLAY |
Units |
Dual Sides |
|
|
IIIUMINATION |
Display |
Yes |
|
|
Reticle |
Yes |
||
|
COMPENSATOR |
Tilt sensor |
Vertical |
|
|
Compensating range |
卤3' |
||
|
LEVEL SENSITIVITY |
Plate level |
30"/2mm |
|
|
Circular level |
8' /2mm |
||
|
OTHER |
Standard |
IP66 |
|
|
Battery |
Rechargeable Ni-H battery |
||
|
Opterating time |
10hours |
20hours |
|
|
Voltage |
6V |
||
|
Operating Temp |
Operating Temp |
||
|
Packed Weight |
8KGs | ||
