Factory Supply High Quality L Bar Mini Surveying Prism Copper Coated For Wide Range Applications Of Monitoring Surveying
- Item No. : GMP104
Features & Applications

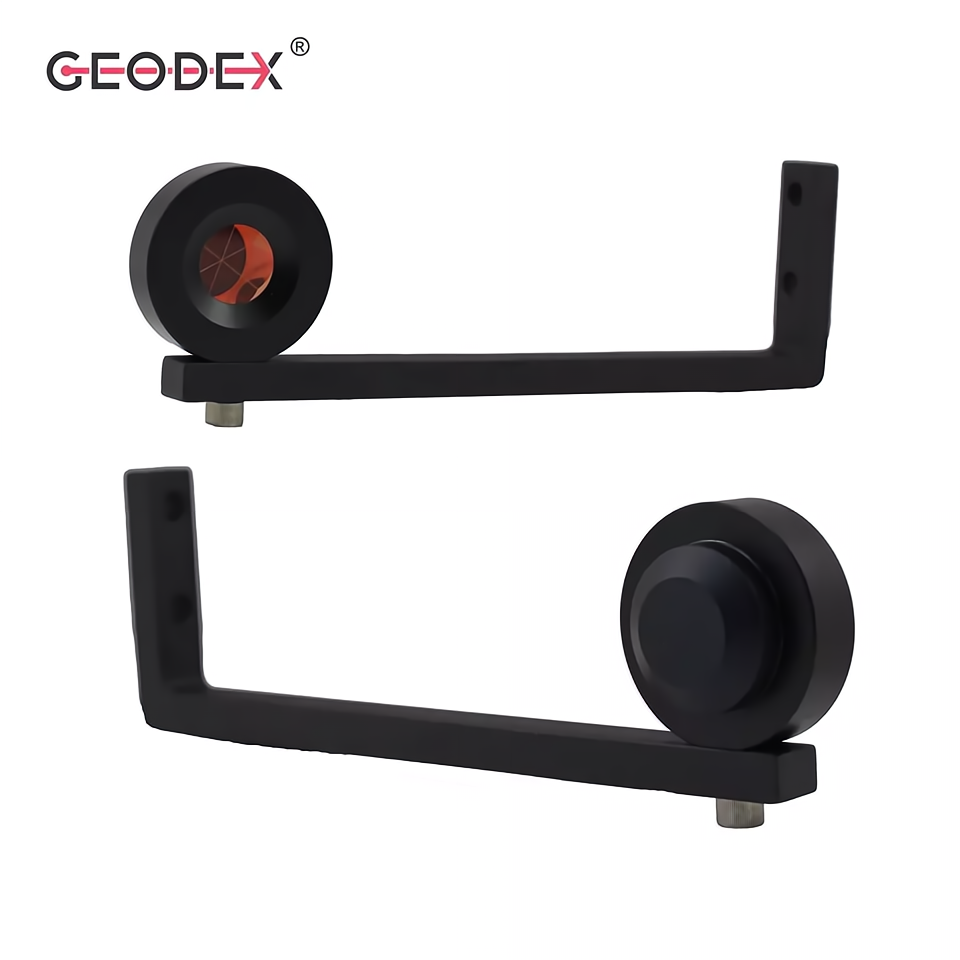

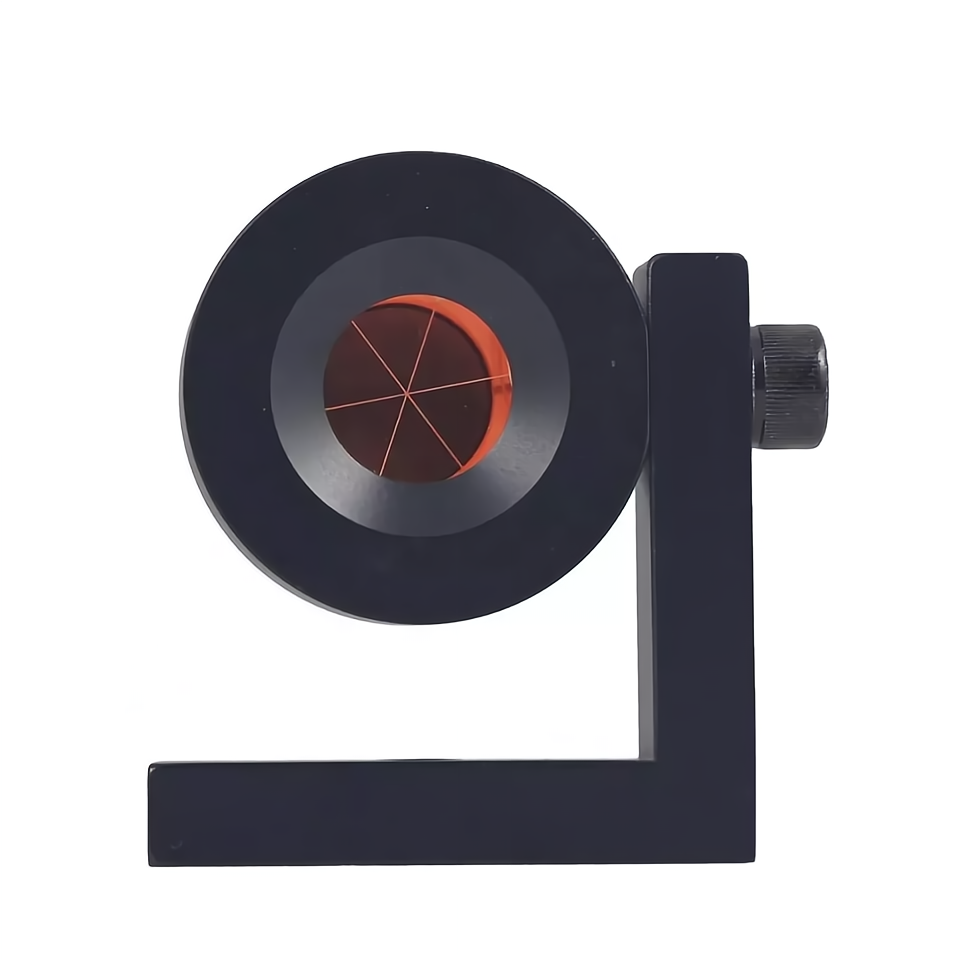

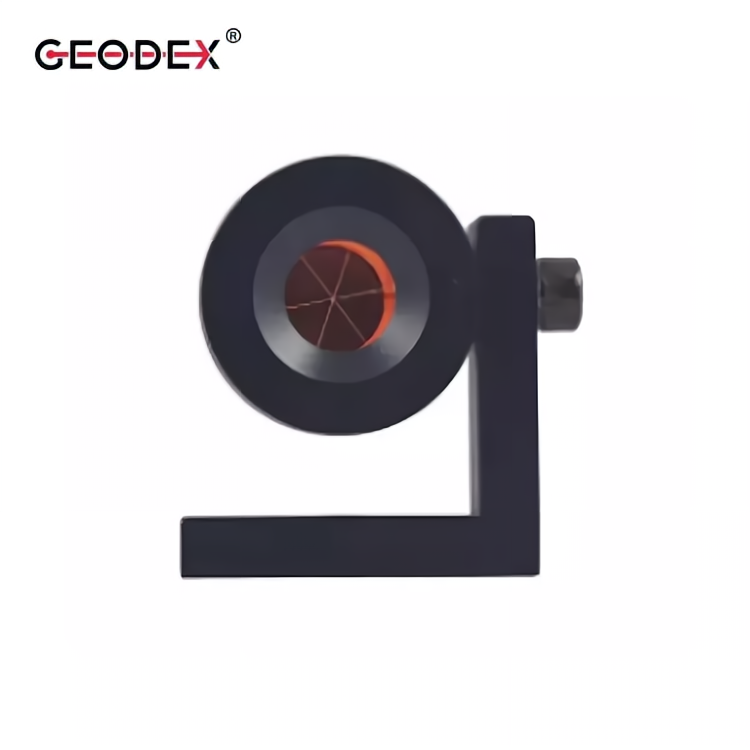

鈼 The L bracket GMP104 mini prism can be installed on monitoring surveying projects for metro, mining, bridges and so on, used with Total Station for GIS data collecting.
鈼 The frame L-shaped mounting bracket is a 10mm hexagon bolt, prism optical glass 桅25.4脳H19.8 copper plating film, Reflectivity: 95%
鈼 Prism constant: 8.92 鈼 Measuring range: 1000m
鈼 Prism angle: 鈮5銆 鈼 Finish: 60~40

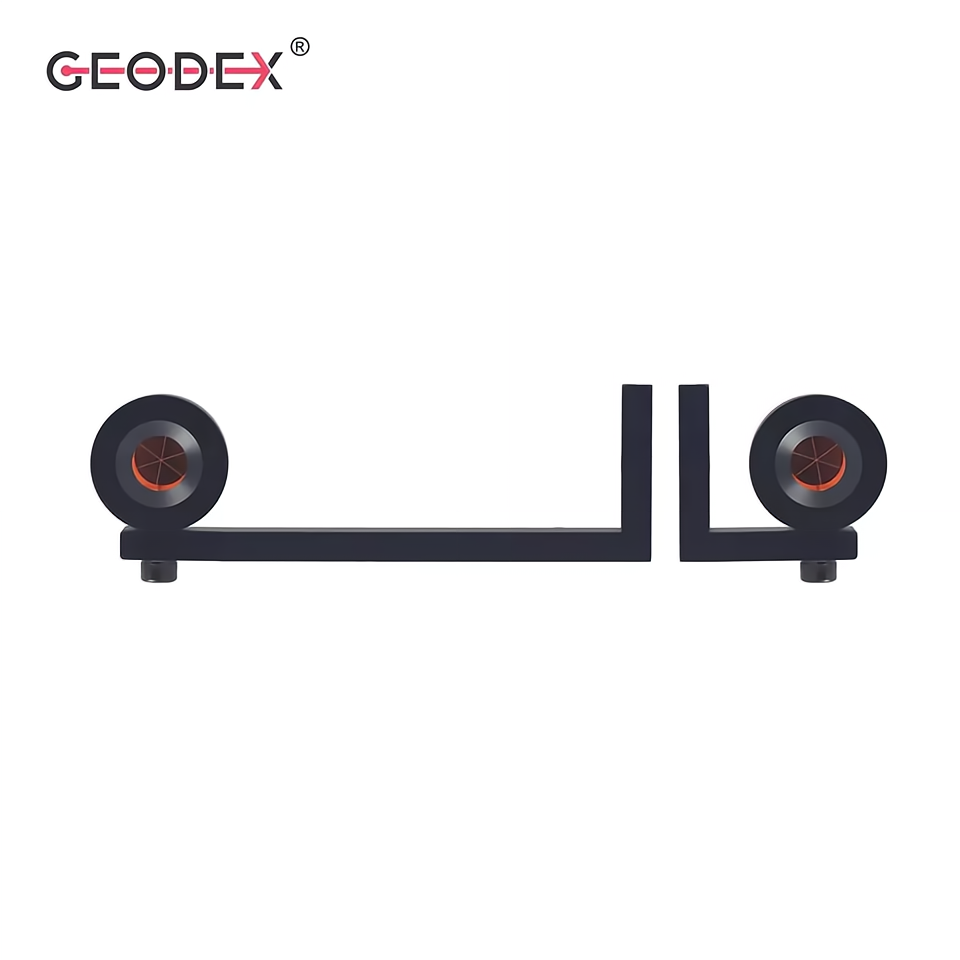

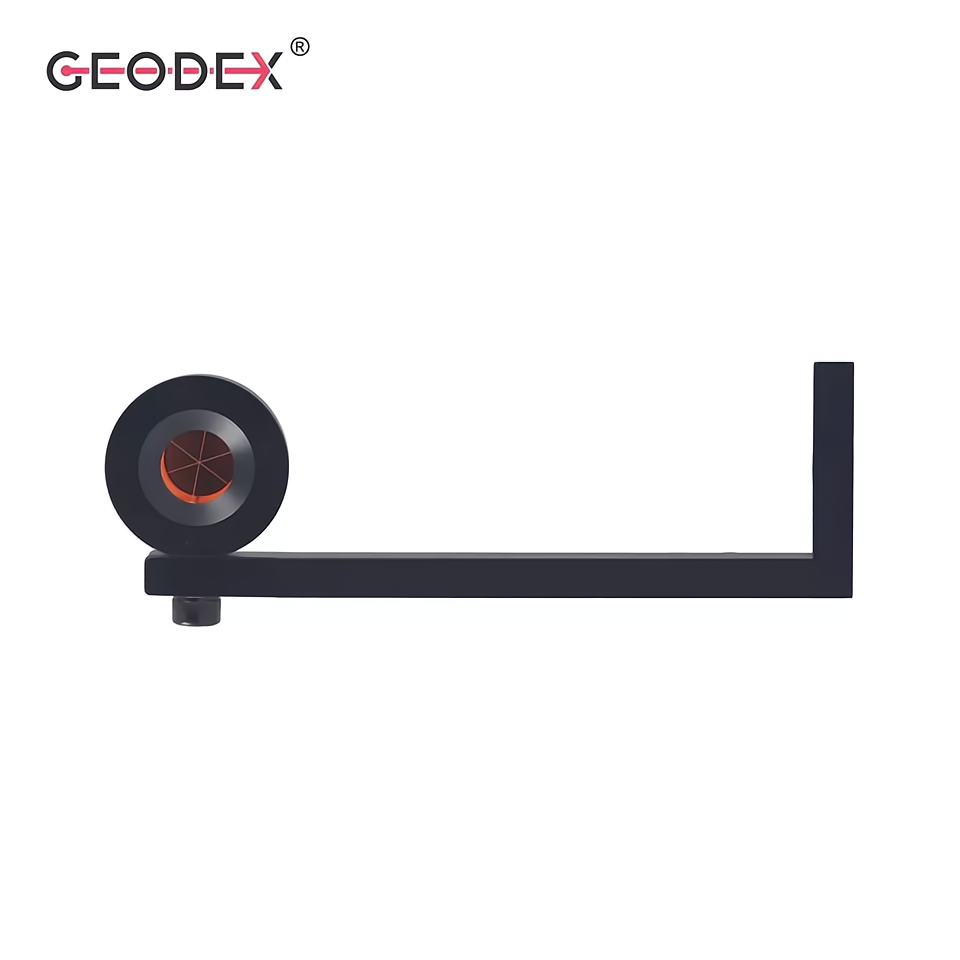

鈼 L bracket Size: 3 inches/9 inches optional 鈼 Coated with rubber ring (optional)
鈼 Back type A/B optional- Inquiry now
Technical Specifications
|
Model Number |
GMP104 |
|
Angle Tolerance |
2''~ 10'' |
|
Offset |
-30/0mm |
|
Diameter |
1" (25.4 mm) |
|
Range |
6500 ft (2000 m) |
|
Material |
Optical Glass |
|
Dimension |
0.1mm, +0.0/-0.1mm |
|
Flatness |
25.4mm |
|
Type |
Copper coated |
