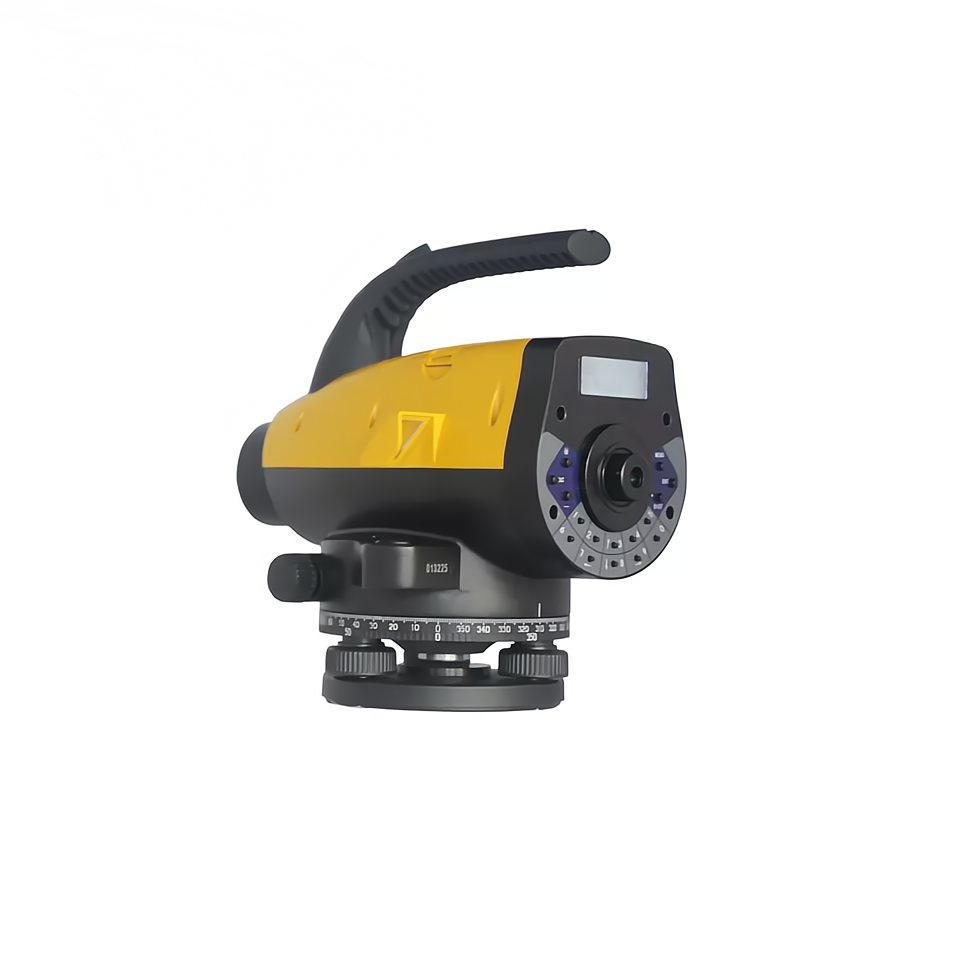

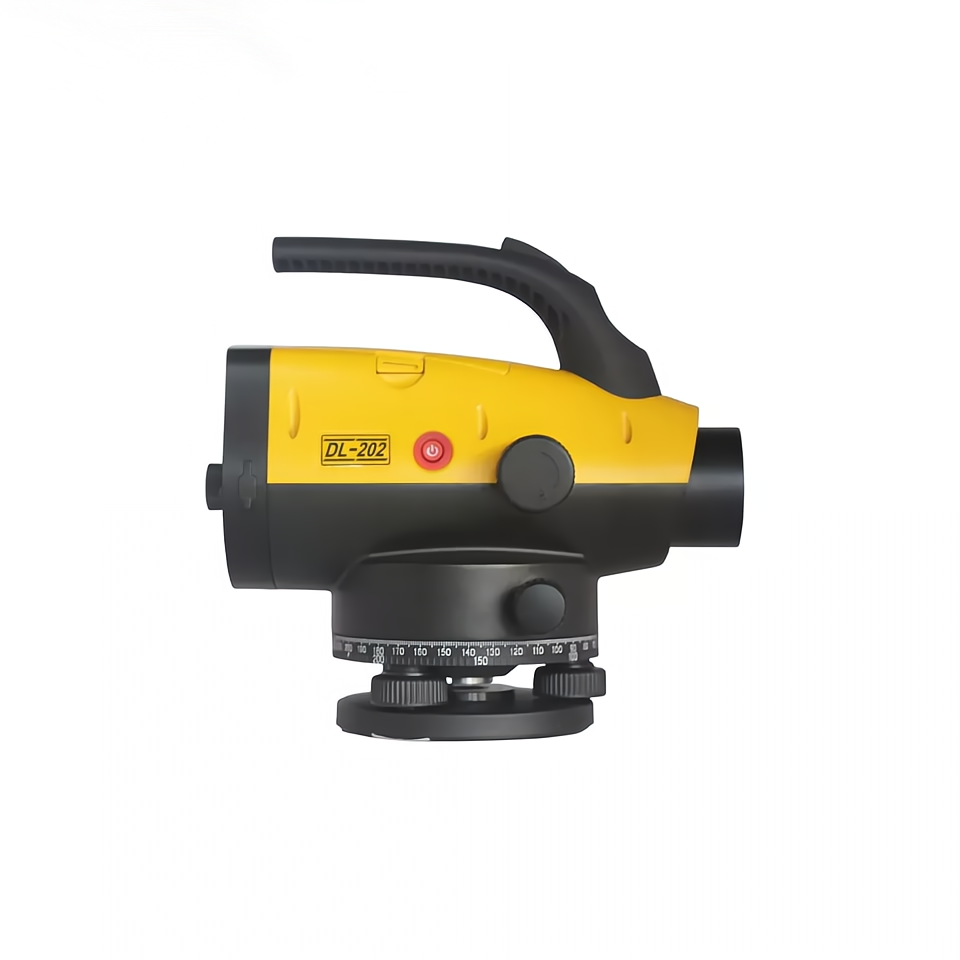

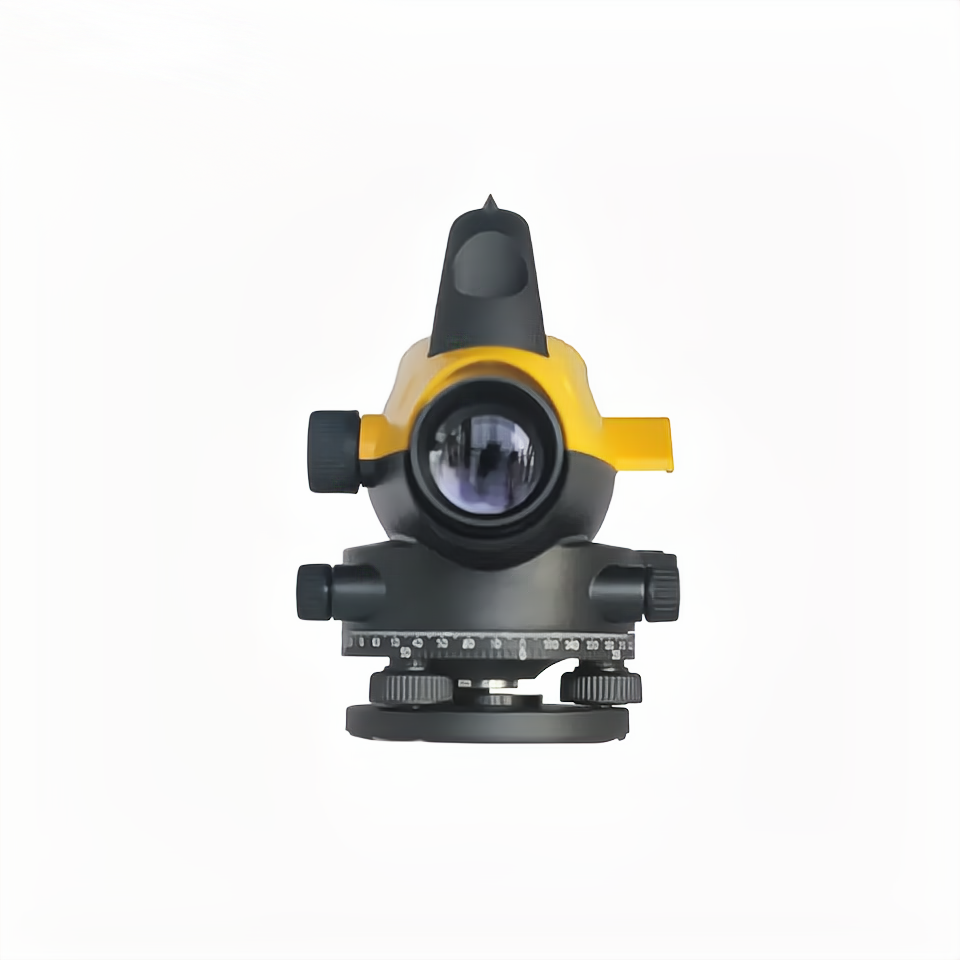

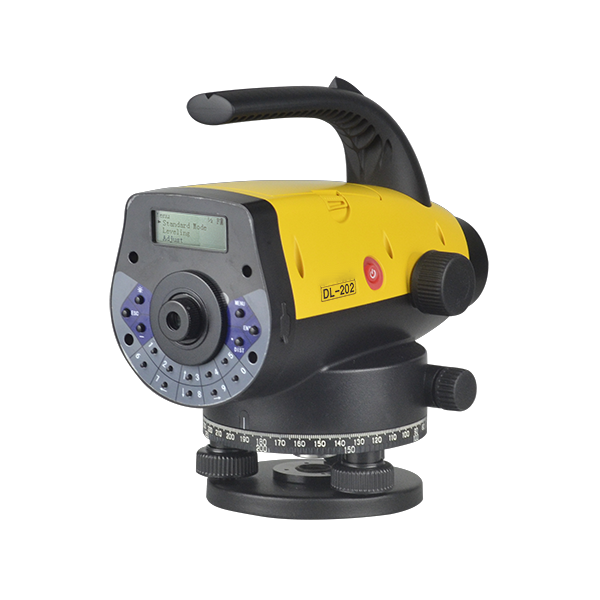

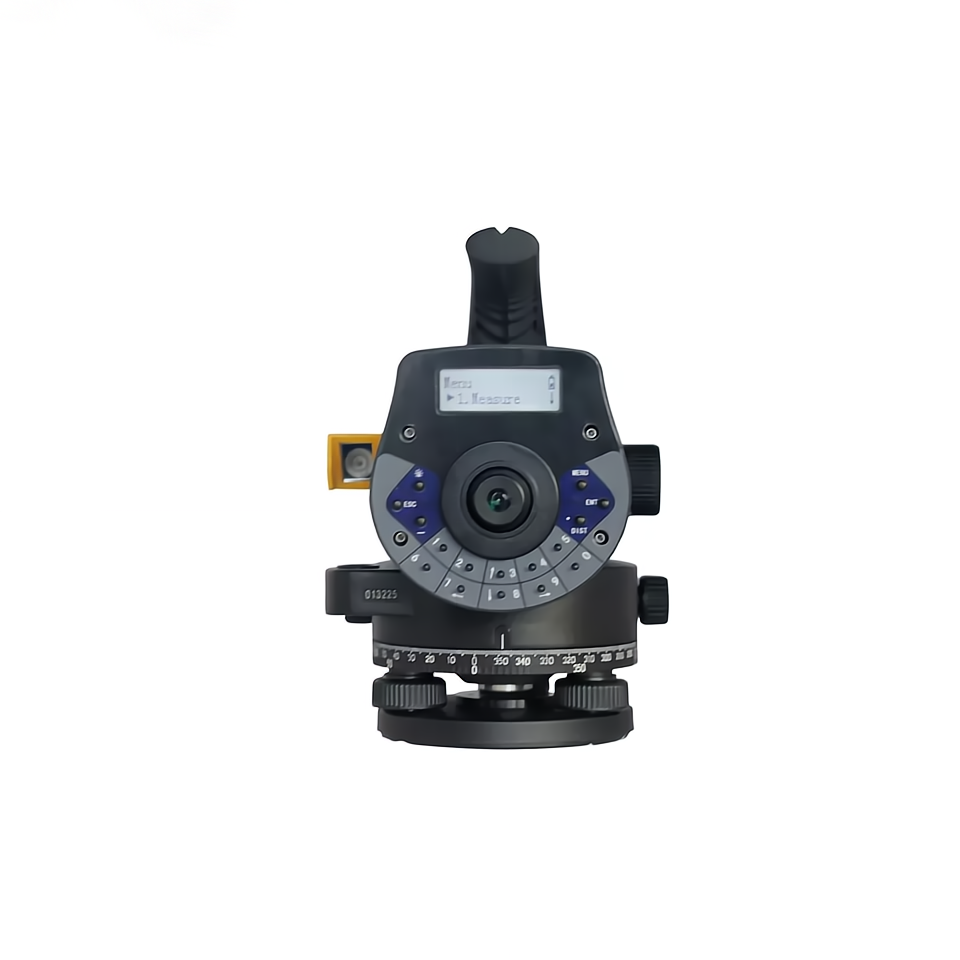

Digital Level Meter Ruide DL-202
- Item No. : DL-202
Features & Applications
鈼 Automatic Reading: Human errors elliminated from misreading and misreporting
鈼 High Accuracy: Averaging mode for more accurate results
鈼 Fast Computation: Half time saved whencompared with traditional auto level
鈼 High Effciency: Abundant surveying software programs available, and with automatic error compensation
鈼 Auto Save: Internal storage 16MB & Mini USB
- Inquiry now
Technical Specifications
|
Item |
|
DL-202 |
|
Height Accuracy
(standard deviation for
1km double run leveling)
|
Digital Reading |
1.5mm |
|
Optical Reading |
2.0mm |
|
|
Distance Accuracy |
Digital Reading |
D鈮10m:10mm;D>10m:D*0.001 |
|
Distance Range |
Digital Reading |
2m~110m |
|
Minimum Display |
HD |
1mm/0.5mm |
|
Distance |
0.1/1cm |
|
|
Measuring Time |
|
Within 3s in normal condition |
|
Telescope |
Magnification |
32X |
|
Resolving Power |
3" |
|
|
Field of View |
1掳30' |
|
|
Multiple
Constant
|
100 |
|
|
Additive
Constant
|
0 | |
|
Compensator |
Type |
Magnetic-damped |
|
Range |
>卤12' |
|
|
Accuracy |
0.50"/1' |
|
|
Data Storage |
Storage |
16MB,2000 points |
|
Point number |
Increasing |
|
|
Connection |
USB |
|
|
Circular vial Accuracy |
8'/2mm |
|
|
Display |
128*32dpi LCD with illumination |
|
|
Working Temperature |
-20鈩儈50鈩 |
|
|
Dimension |
230mmX150mmX210mm |
|
|
Weight |
2.5kg |
|
|
3-Proofs Protection |
IP54 |
|
