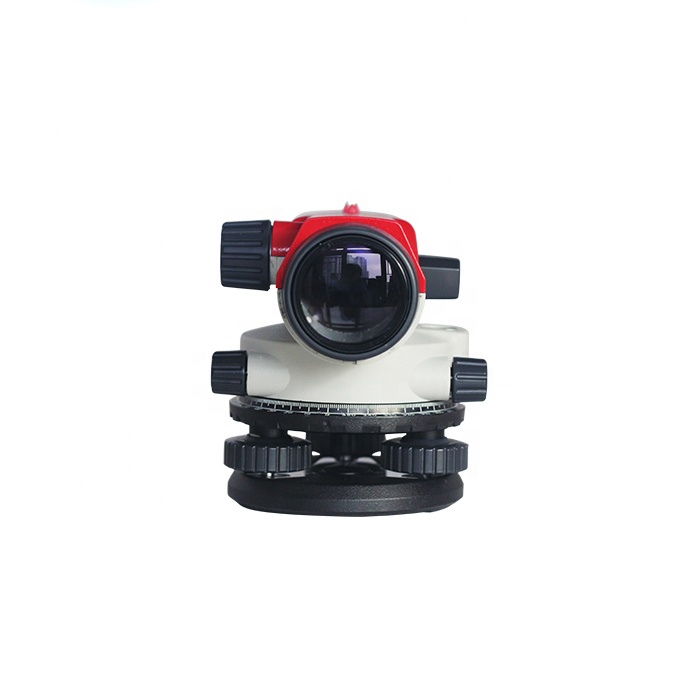

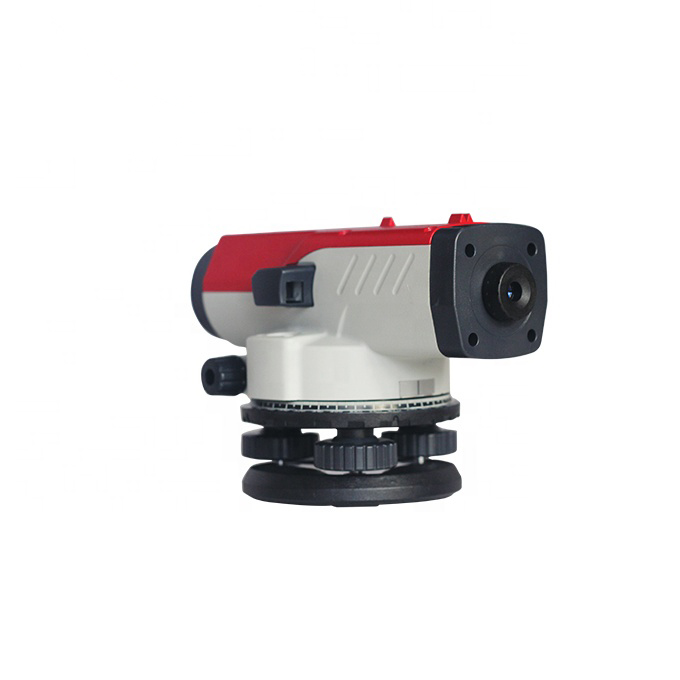

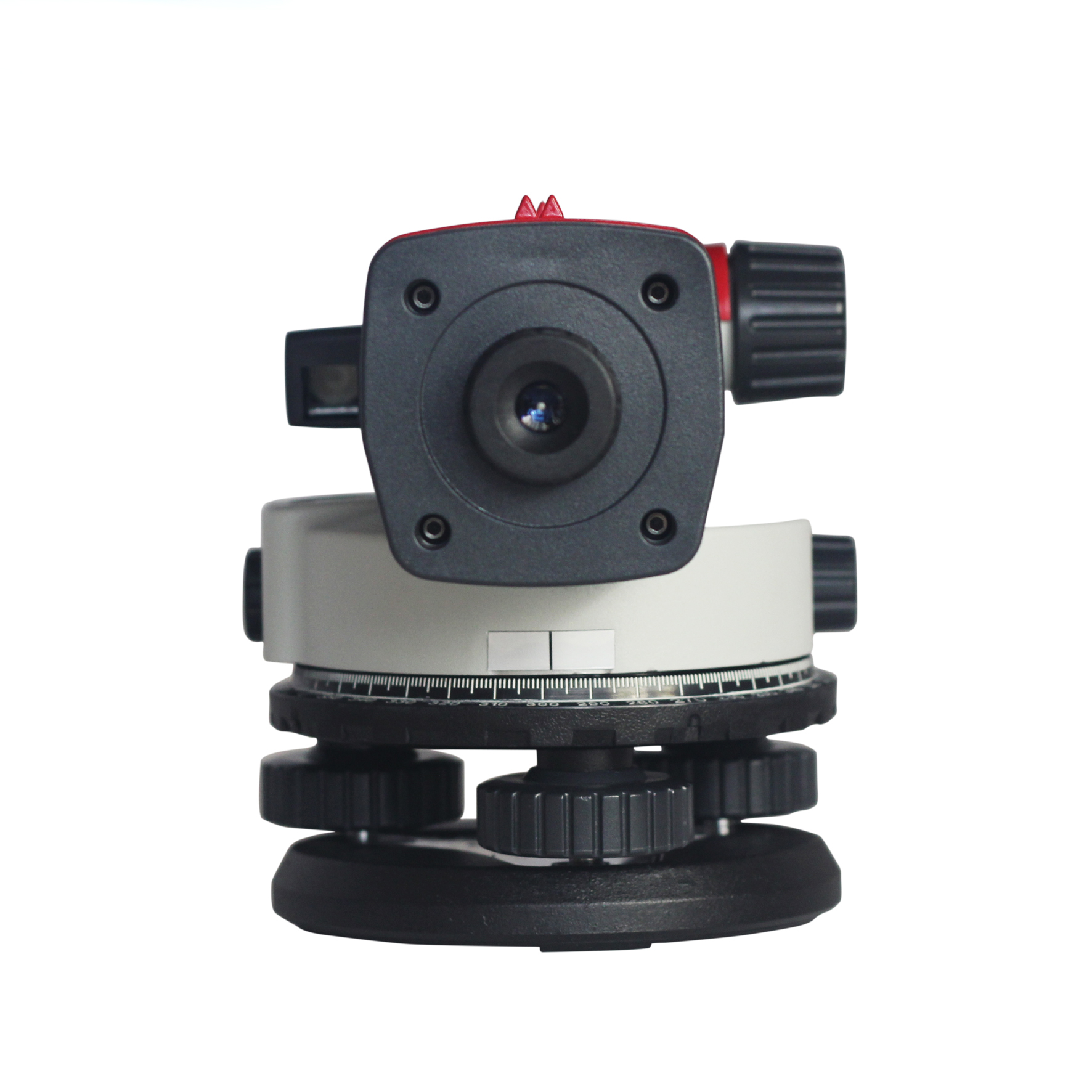

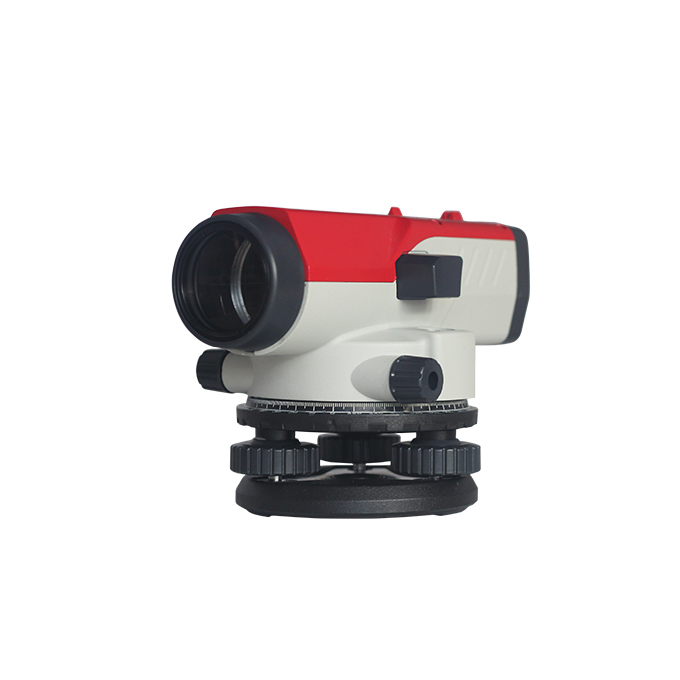

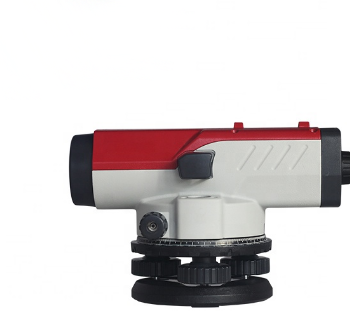

G5 Automatic Level Surveying Instrument Dumpy Level with All-Weather Dependability Auto Level Survey Equipment

G5 Automatic Level Surveying Instrument Dumpy Level with All-Weather Dependability Auto Level Survey Equipment
Item No. : G5-32X
Features & Applications

● Rapid,Stable,and Durable Compensator
● 20cm(7.9in) - Ultra-Short Minimum Focus
● Horizontal Circle for Angle Measurement
● All-Weather Dependability
Inquiry now

Technical Specifications

MODEL	G5-32X
TELESCOPE	Length		215mm(8.46in.)
	Magnification		32X
	Objective Aperture		42mm(1.65in.)
	Resolving Power		3"
	Field of View (at 100m/328ft.)		1°20'(2.3m/7.5ft.)
	Minimum Focus		0.2m(7.9in.)from end of telescope 0.3m(1ft.)from instrument center
	Image		Erect
	Stadia Constant		0
	Stadia Ratio		100
	Focusing Knob		2-speed
	Sighting Aid		Peep
ACCURACY(1KM DUBLE RUN LEVELING)	Without Micrometer		0.7mm(0.03in.)
	With Micrometer		0.5mm(0.02in.)
COMPENSATOR	Type		Pendulum compensator with magnetic damping system
	Setting Accuracy		0.3"
	Working Range		±15"
CIRCULAR LEVEL	Sensitivity		10'/2mm
HORIZONTAL CIRCLE	Diameter		103mm(4.1in.)
	Minimum Division		1°/1 gon
GENERAL	Water Resistance		IPX6(IEC 60529:2001)
	Operating Temperature		-20 to +50℃(-4 to +122°F)
	Body Size	Width	130mm(5.12in.)
		Length	215mm(8.46in.)
		Height	140mm(5.51in.)
	Weight		1.85kg(4.1lbs.)
